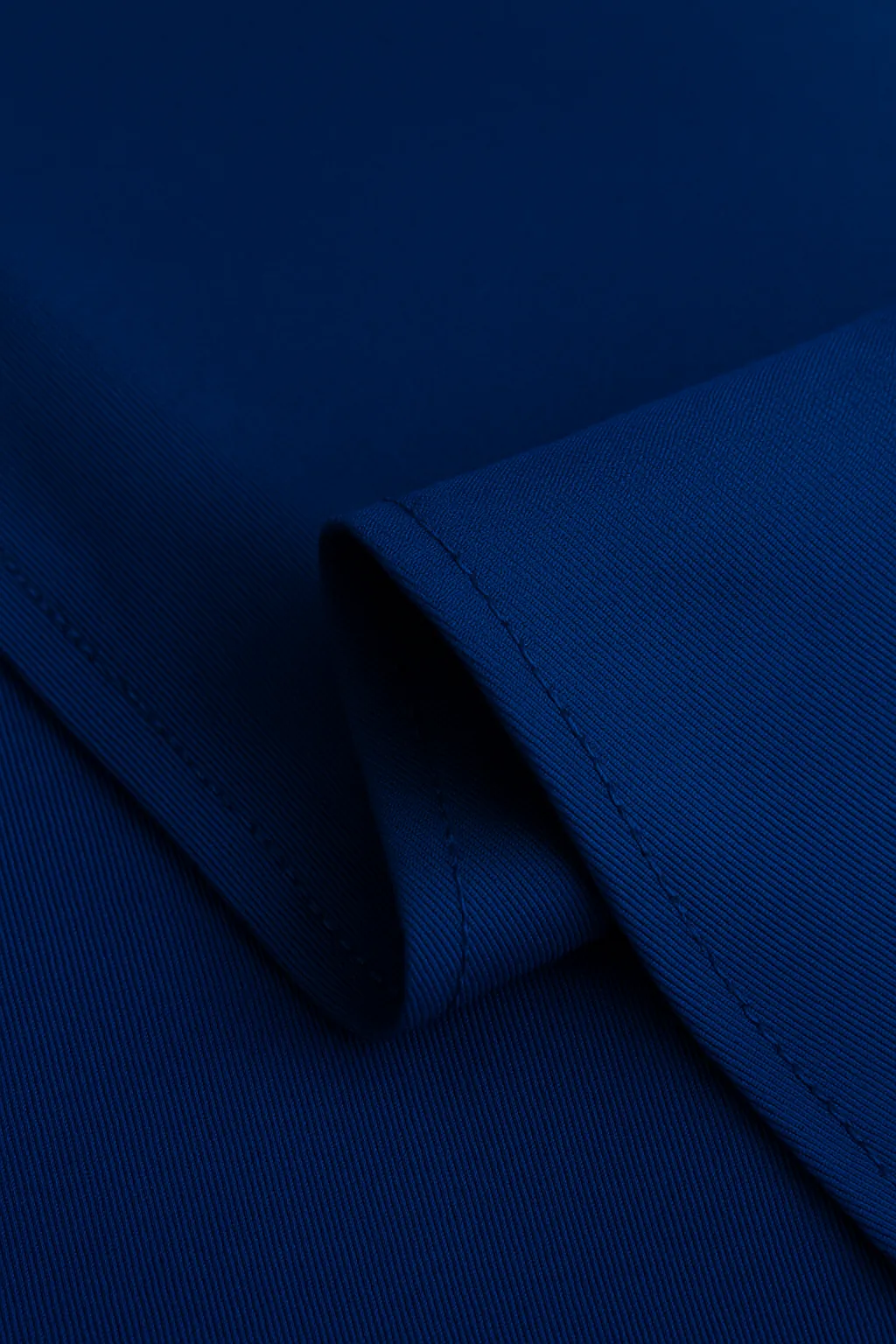

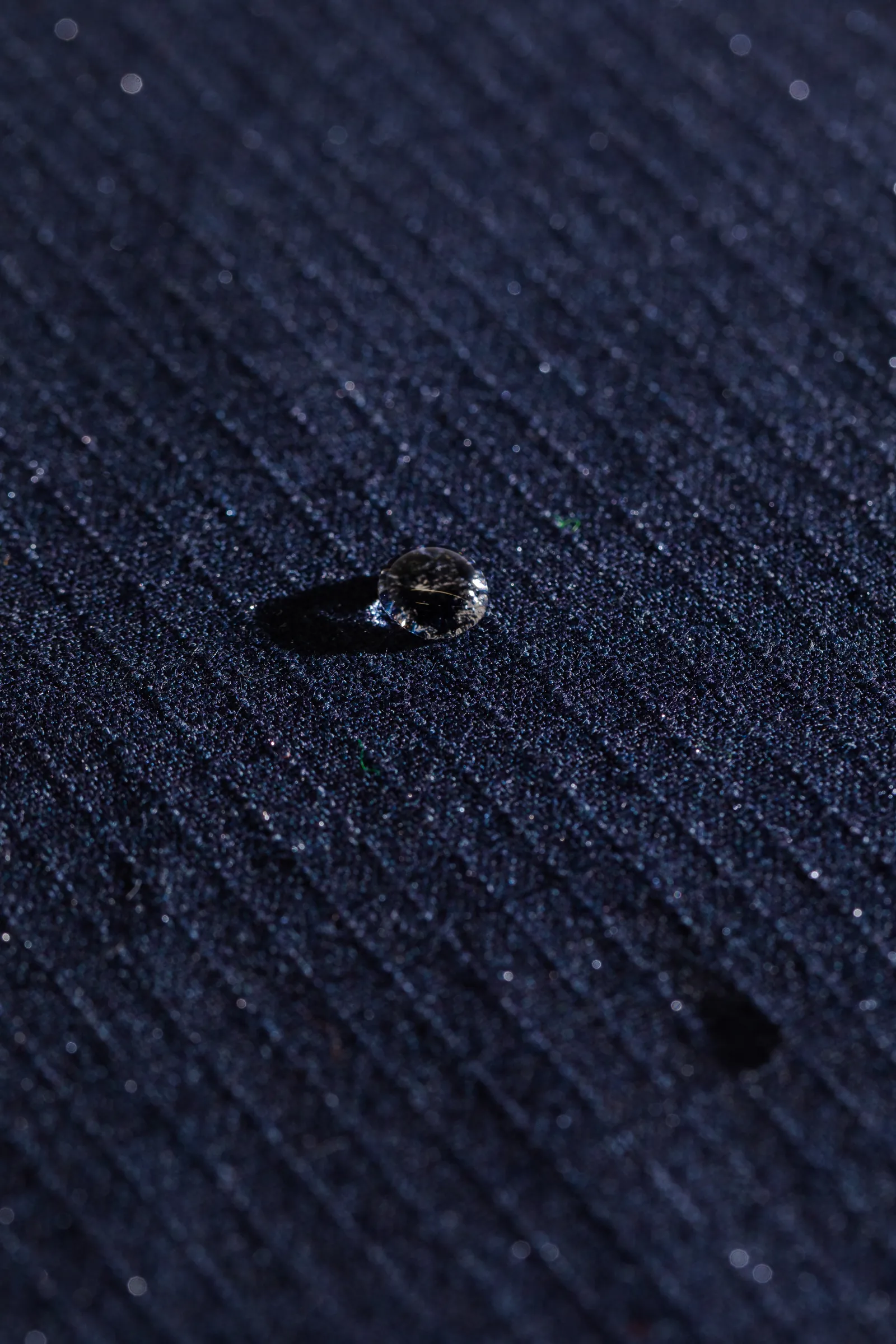

NON FLAMMABLE FABRIC
MARLAN AT365FC
Comfortable protection against fire, heat and molten metal splashes.
Weight
370 g/m² ± 5%
Weave
Sarga 3/1
Width
153 cm
COLORS
catalog.tab_tech
| Characteristics | Standard | Result |
|---|---|---|
| Heat Resistance (180ºC) | ISO 17493 | PASS |
| Limited Flame Spread (H) | UNE-EN ISO 15025 (A) | A1 |
| Convective Heat (s) | UNE-EN ISO 9151 | B1 |
| Radiant Heat (s) | UNE-EN ISO 6942 | C1 |
| Molten Metal Splashes (Aluminium) | UNE-EN ISO 9185 | D3 |
| Molten Metal Splashes (Iron) | UNE-EN ISO 9185 | E3 |
| Molten Metal Splashes (Cryolite) (g) | UNE-EN ISO 9185 | 85 |
| Contact Heat | UNE-EN ISO 12127-1 | F1 |
| Electric Arc (ATPV) (cal/cm2) | ASTM F1959 | 9.4 |
| Electric Arc (HAF) (%) | ASTM F1959 | 75 |
| Electric Arc (Box test) | EN 61482-1-2 | APC 1 |
| Welding and allied processes | UNE-EN ISO 11611 | CLASS 1 |
| Antistatic | UNE-EN 1149-3 | PASS* |
| Antacid | UNE-EN 13034 | PASS* |
| Water vapour resistance - Ret (m2·Pa/W) | UNE-EN ISO 11092 | 5,8881 |
| Thermal Resistance - Rct (m2·K/W) | UNE-EN ISO 11092 | 0,0073 |
| Tensile Strength Warp (N) | UNE-EN ISO 13934-1 | 805 ±10% |
| Tensile Strength Weft (N) | UNE-EN ISO 13934-1 | 640 ±10% |
| Tear Resistance Warp (N) | UNE-EN ISO 13937-2 | 25 (-5N) |
| Tear Resistance Weft (N) | UNE-EN ISO 13937-2 | 21 (-5N) |
| Dimensional Change Warp (%) | UNE-EN ISO 5077 | <3% |
| Dimensional Change Weft (%) | UNE-EN ISO 5077 | <3% |
REV.
2
Certifications
EN ISO 11612
IEC 61482
EN ISO 11611
EN 1149
EN 13034
ASTM F1959
EN 1149-5
Risks
Washing Info
Wash at 60ºC
Iron at 150ºC
Do not bleach
Tumble dry at low temperature
Tunnel drying
Dry clean
