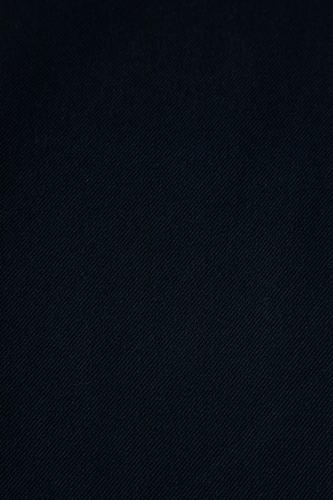

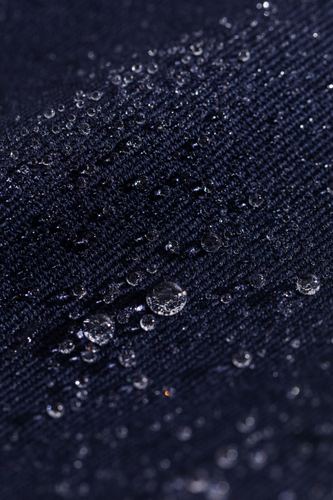

NON FLAMMABLE FABRIC
PLUSMARK AT295F0
Comfortable protection against fire and heat.
Weight
315 g/m² ± 5%
Weave
Sarga 3/1
Width
153 cm

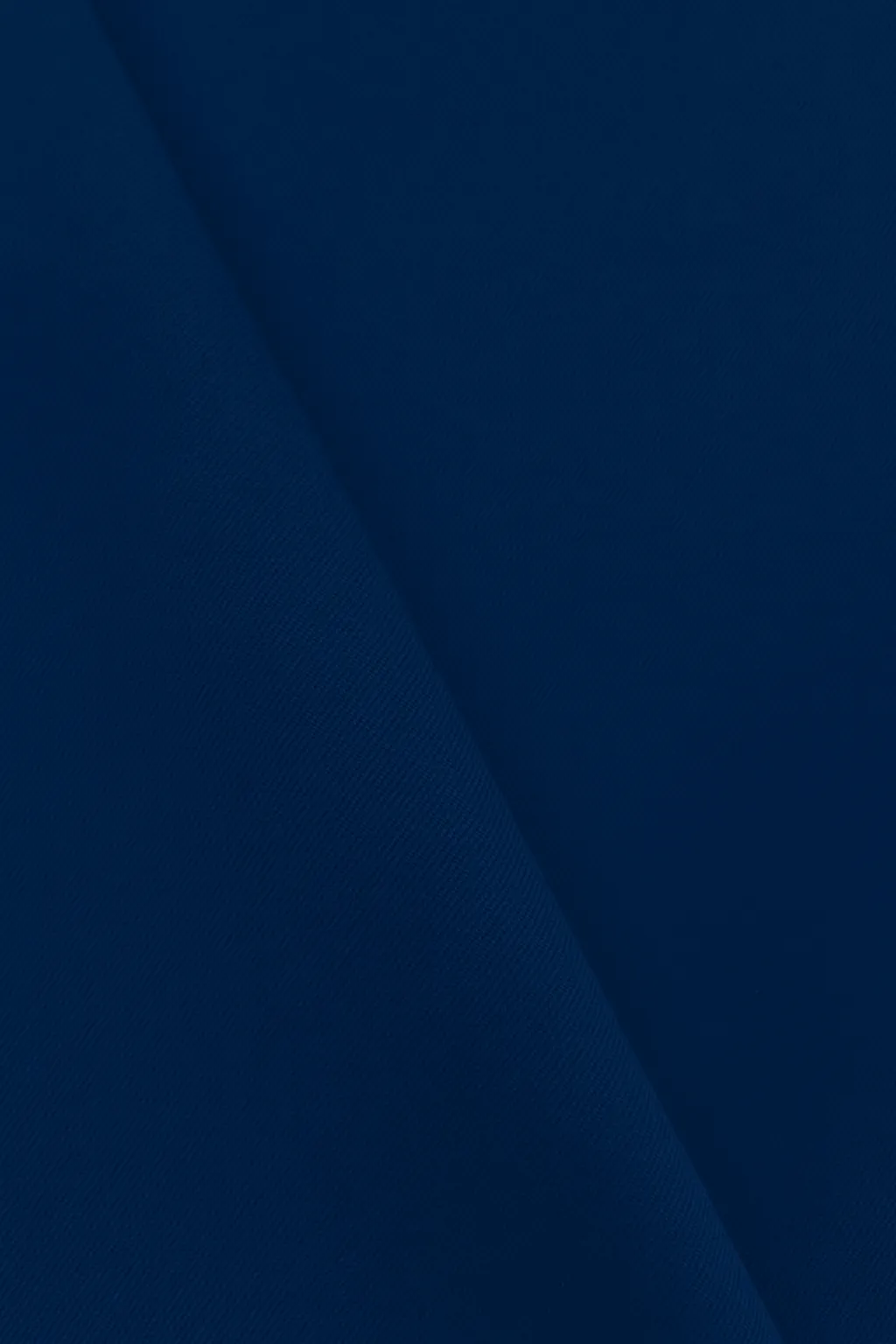

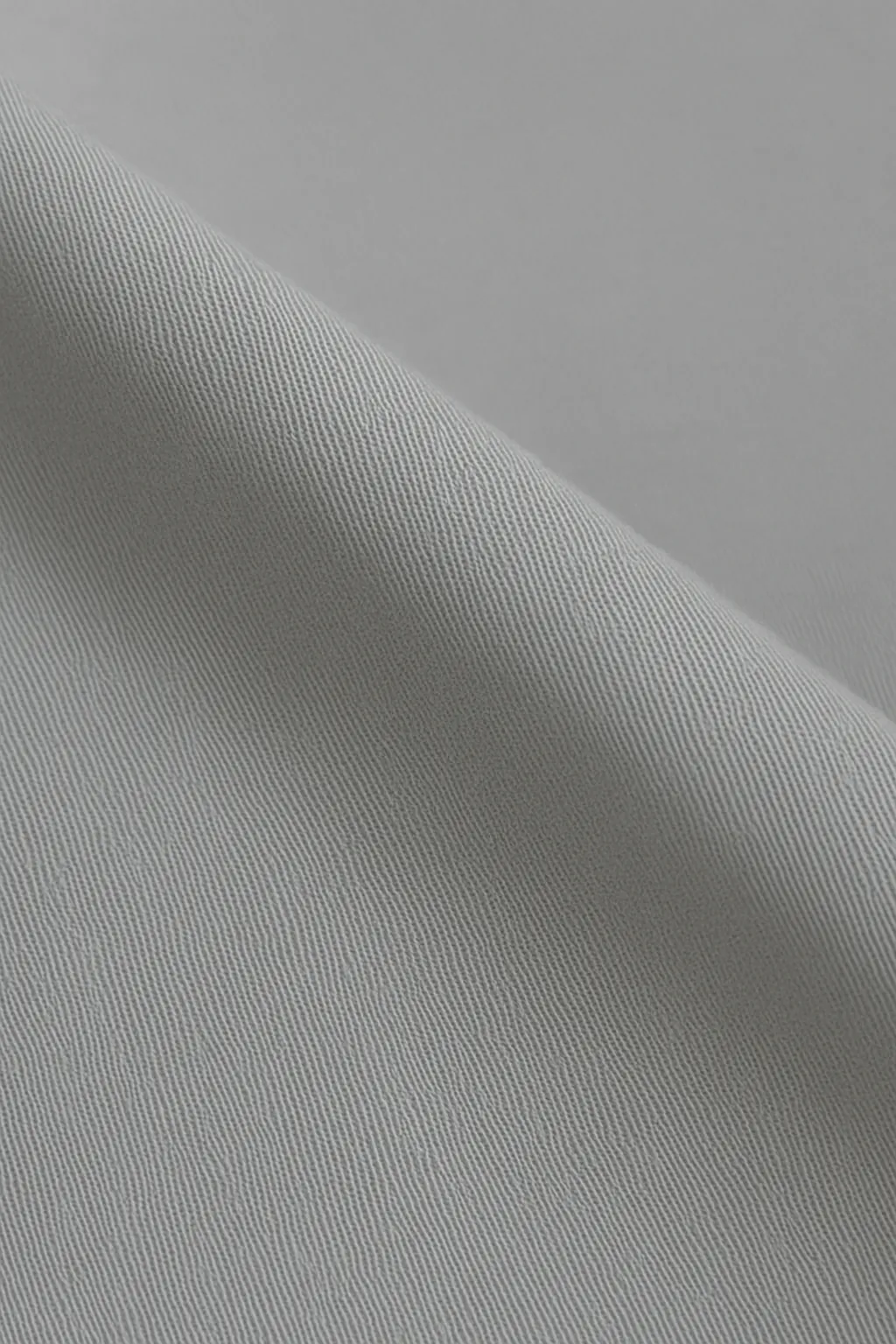

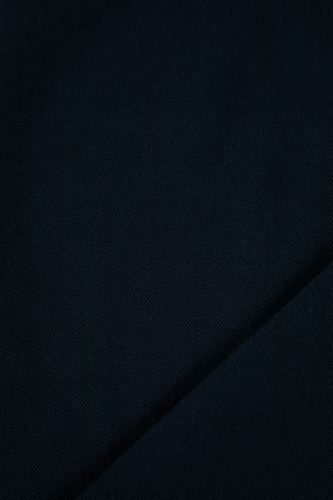

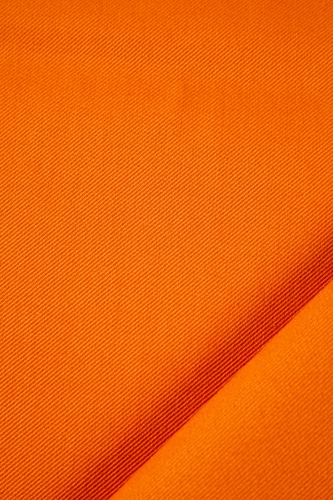

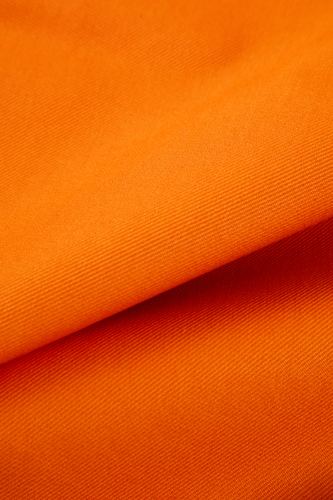

COLORS
catalog.tab_tech
| Characteristics | Standard | Result |
|---|---|---|
| Heat Resistance (180ºC) | ISO 17493 | PASS |
| Limited Flame Spread (H) | UNE-EN ISO 15025 (A) | A1 |
| Convective Heat (s) | UNE-EN ISO 9151 | B1 |
| Radiant Heat (s) | UNE-EN ISO 6942 | C1 |
| Molten Metal Splashes (Iron) | UNE-EN ISO 9185 | E2 |
| Contact Heat | UNE-EN ISO 12127-1 | F1 |
| Electric Arc (Elim) (cal/cm2) | EN 61482-1-1 | 12 |
| Electric Arc (ATPV) (cal/cm2) | EN 61482-1-1 | 15 |
| Electric Arc (Ebt) (cal/cm2) | ASTM F1959 | 13 |
| Electric Arc (HAF) (%) | ASTM F1959 | 84,2 |
| Electric Arc (Box test) | EN 61482-1-2 | APC 1 |
| Welding and allied processes | UNE-EN ISO 11611 | CLASS 1 |
| High visibility | UNE-EN ISO 20471 | PLUSMARK AT295HV |
| Antacid | UNE-EN 13034 | PASS |
| Tensile Strength Warp (N) | UNE-EN ISO 13934-1 | 1.320 ±10% |
| Tensile Strength Weft (N) | UNE-EN ISO 13934-1 | 1.285 ±10% |
| Tear Resistance Warp (N) | UNE-EN ISO 13937-2 | 50 (-5N) |
| Tear Resistance Weft (N) | UNE-EN ISO 13937-2 | 55 (-5N) |
| Dimensional Change Warp (%) | UNE-EN ISO 5077 | <3% |
| Dimensional Change Weft (%) | UNE-EN ISO 5077 | <3% |
REV.
3
Certifications
EN ISO 11612
IEC 61482
EN ISO 11611
EN 1149
EN ISO 20471
EN 13034
ASTM F1959
EN 1149-5
Risks
Washing Info
Wash at 75ºC
Iron at 150ºC
Do not bleach
Tumble dry at low temperature
Tunnel drying
Dry clean
