NON FLAMMABLE FABRIC
PLUSMARK AT295FC
Antistatic
Fluorocarbon F6
Antistatic
Fluorocarbon F6

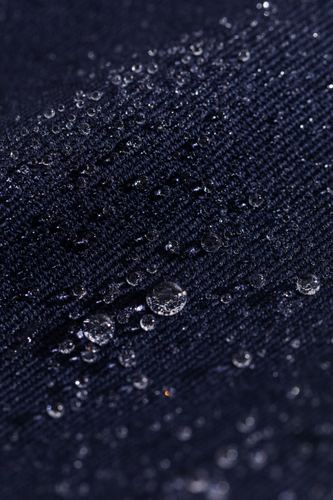

The PLUSMARK AT295FC flame-retardant fabric features an FC finish that repels liquids, oils, and dirt, offering maximum strength, comfort, and durability.
Weight
315 g/m² ± 5%
Weave
Sarga 3/1
Width
150 cm

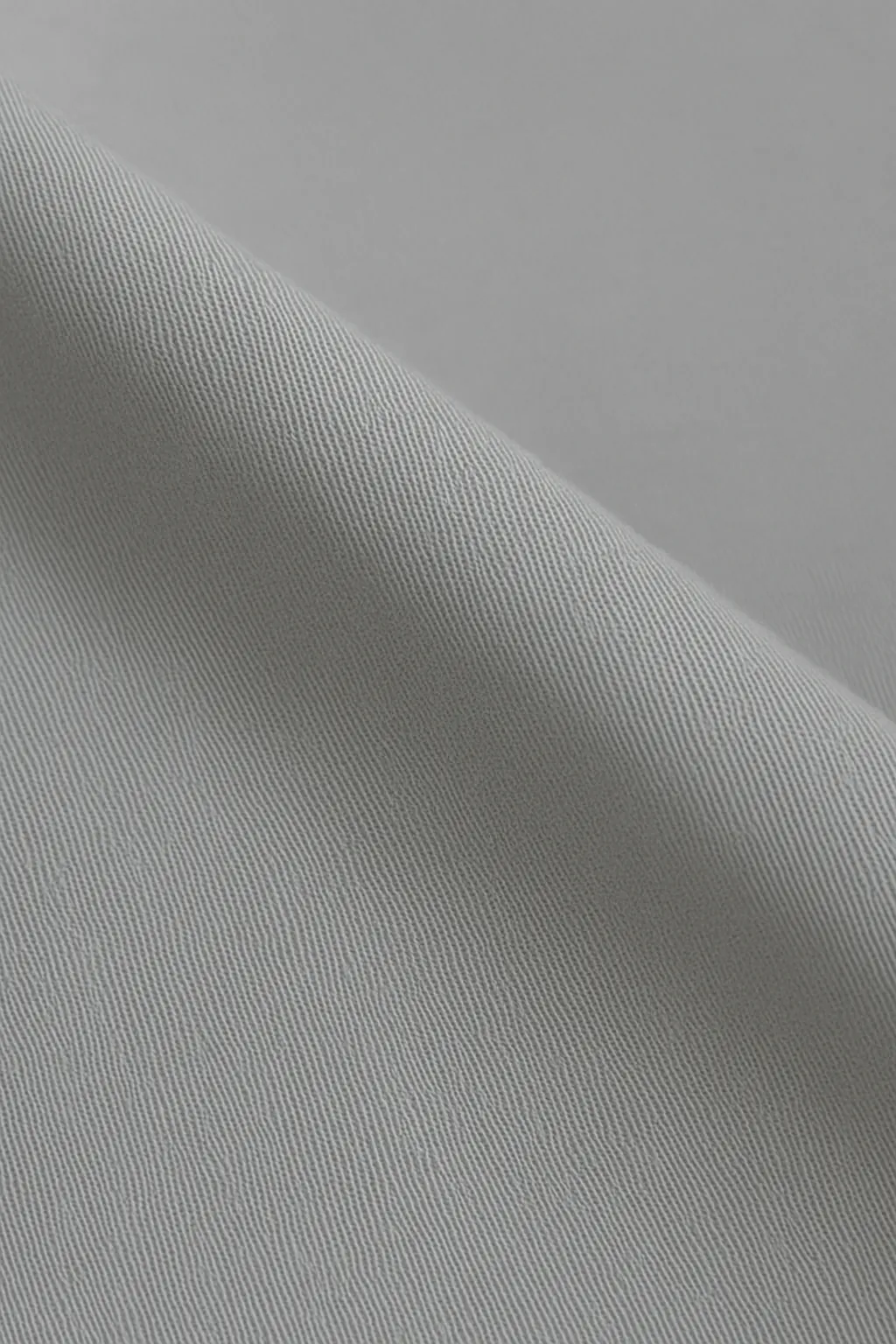

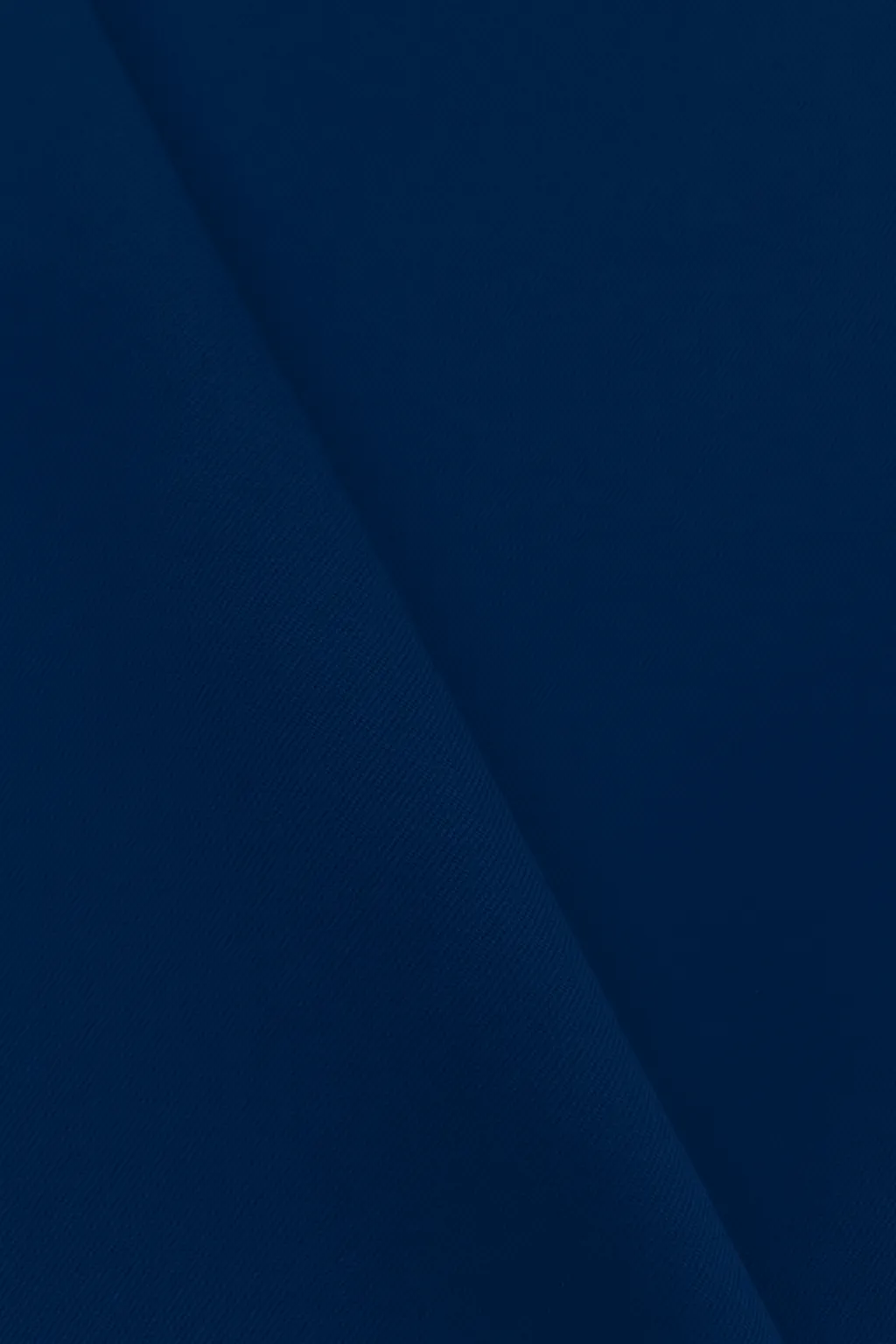

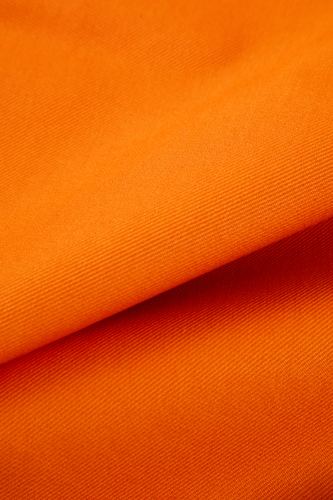

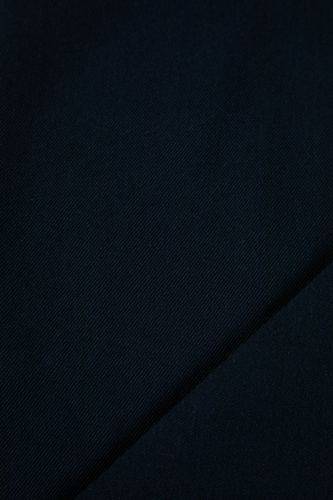

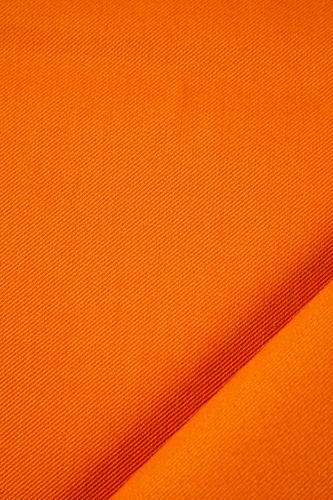

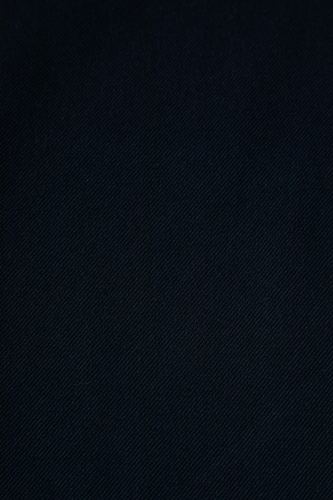

COLORS
Description
The PLUSMARK AT295FC fabric is a high-performance, multi-standard flame-retardant technical solution designed to provide protection against fire and heat, combining maximum mechanical strength with comfort in demanding industrial environments. With a weight of 315 g/m² and a 3/1 twill weave, it features a robust structure ideal for garments such as protective jackets, pants, or coveralls. This fabric is part of the PLUSMARK range, characterized by its high level of comfort, breathability, and durability. Its construction using Corespun technology—a high-tenacity polyamide core coated with modacrylic and cotton—provides high resistance to wear and tear and a long service life even after multiple industrial washes. It incorporates an FC (fluorocarbon) finish that provides liquid-, oil-, and dirt-repellent properties. This treatment acts as a protective barrier that prevents the penetration of external agents, facilitating garment maintenance and improving its performance in demanding industrial environments. In addition, the PLUSMARK AT295FC includes acid protection as part of its multi-standard features, expanding its use in environments where there are minor chemical risks. Thanks to its high thread count and combination of water repellency and durability, this fabric is particularly well-suited for heavy-duty applications in sectors such as petrochemicals, energy, utilities, heavy industry, and maintenance, where maximum durability and protection are required. The PLUSMARK AT295FC fabric is an ideal choice for developing comprehensive, robust, and functional multi-standard garments designed to withstand the most demanding working conditions.catalog.tab_tech
| Characteristics | Standard | Result |
|---|---|---|
| Heat Resistance (180ºC) | ISO 17493 | PASS |
| Limited Flame Spread (H) | UNE-EN ISO 15025 (A) | A1 |
| Convective Heat (s) | UNE-EN ISO 9151 | B1 |
| Radiant Heat (s) | UNE-EN ISO 6942 | C1 |
| Molten Metal Splashes (Iron) | UNE-EN ISO 9185 | E2 |
| Contact Heat | UNE-EN ISO 12127-1 | F1 |
| Electric Arc (Elim) (cal/cm2) | EN 61482-1-1 | 12 |
| Electric Arc (ATPV) (cal/cm2) | EN 61482-1-1 | 15 |
| Electric Arc (Ebt) (cal/cm2) | ASTM F1959 | 13 |
| Electric Arc (HAF) (%) | ASTM F1959 | 84,2 |
| Electric Arc (Box test) | EN 61482-1-2 | CLASS 1 |
| Welding and allied processes | UNE-EN ISO 11611 | CLASS 1 |
| Antistatic | UNE-EN 1149-3 | PASS |
| High visibility | UNE-EN ISO 20471 | PLUSMARK AT295HV |
| Antacid | UNE-EN 13034 | PASS |
| Tensile Strength Warp (N) | UNE-EN ISO 13934-1 | 1.320 ±10% |
| Tensile Strength Weft (N) | UNE-EN ISO 13934-1 | 1.285 ±10% |
| Tear Resistance Warp (N) | UNE-EN ISO 13937-2 | 45 (-5N) |
| Tear Resistance Weft (N) | UNE-EN ISO 13937-2 | 45 (-5N) |
| Dimensional Change Warp (%) | UNE-EN ISO 5077 | <3% |
| Dimensional Change Weft (%) | UNE-EN ISO 5077 | <3% |
REV.
3
Certifications
EN ISO 11612
IEC 61482
EN ISO 11611
EN 1149
EN ISO 20471
EN 13034
ASTM F1959
EN 1149-5
Risks
High visibility
Metal projections
Molten metal splashes
Contact heat
Electric arc
Antistatic
Antacid
Heat and flames
Washing Info
