NON FLAMMABLE FABRIC
PLUSMARK AT295RS
Comfortable protection against fire and heat.
Weight
315 g/m² ± 5%
Weave
Ripstop
Width
153 cm

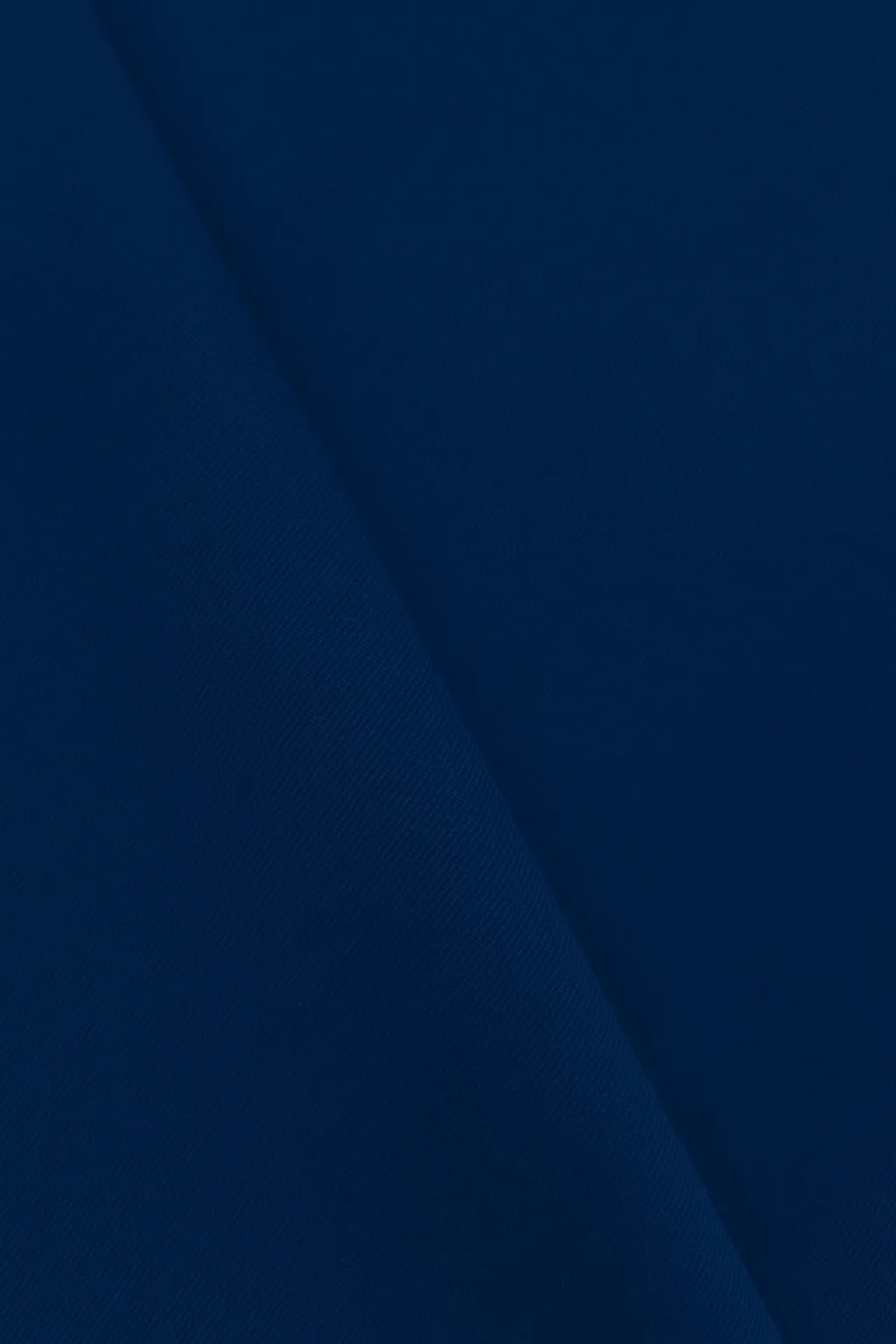

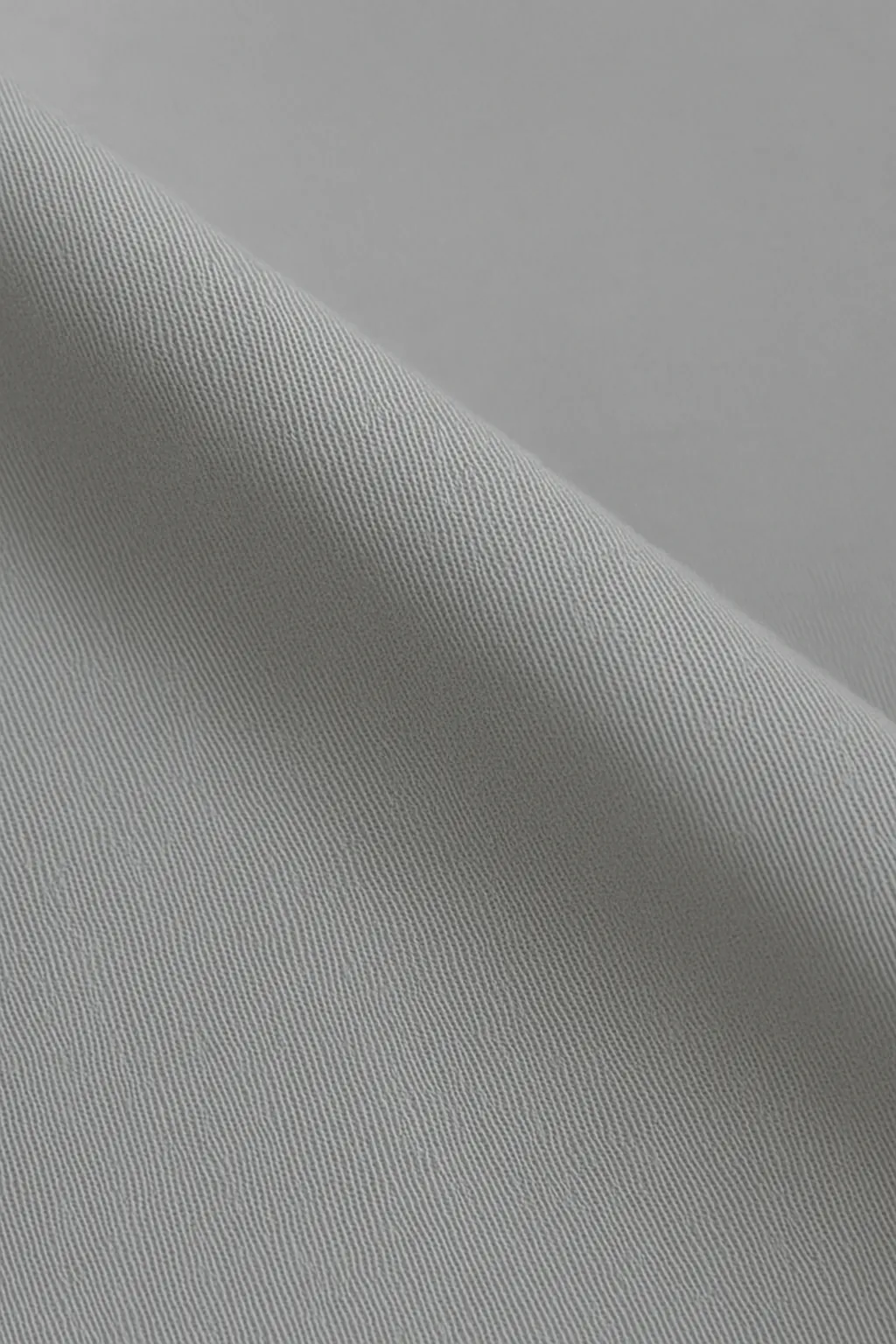

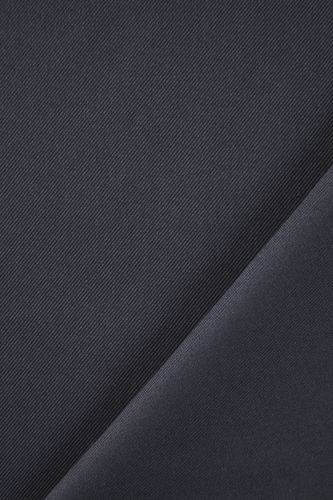

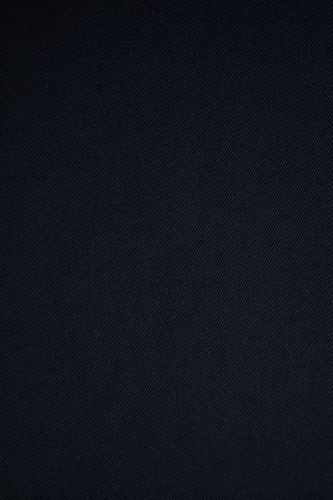

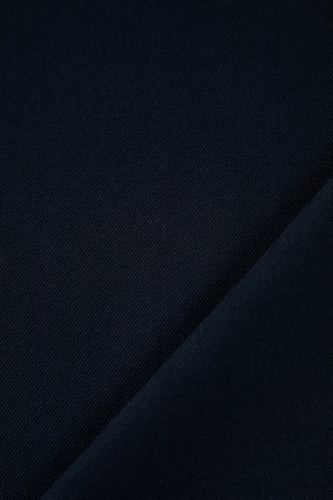

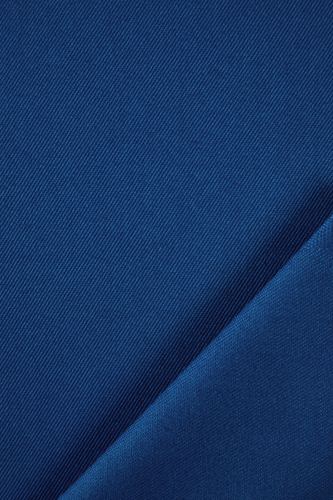

COLORS
catalog.tab_tech
| Characteristics | Standard | Result |
|---|---|---|
| Heat Resistance (180ºC) | ISO 17493 | PASS |
| Limited Flame Spread (H) | UNE-EN ISO 15025 (A) | A1 |
| Convective Heat (s) | UNE-EN ISO 9151 | B1 |
| Radiant Heat (s) | UNE-EN ISO 6942 | C1 |
| Molten Metal Splashes (Iron) | UNE-EN ISO 9185 | E2 |
| Contact Heat | UNE-EN ISO 12127-1 | F1 |
| Electric Arc (Arc rating) (cal/cm2) | ASTM F1959 | > 8 * |
| Electric Arc (Box test) | EN 61482-1-2 | CLASS 1* |
| Welding and allied processes | UNE-EN ISO 11611 | CLASS 1 |
| Antistatic | UNE-EN 1149-3 | PLUSMARK AT295RS FC |
| High visibility | UNE-EN ISO 20471 | PLUSMARK AT295RS HV |
| Tensile Strength Warp (N) | UNE-EN ISO 13934-1 | 1.385 ±10% |
| Tensile Strength Weft (N) | UNE-EN ISO 13934-1 | 1.320 ±10% |
| Tear Resistance Warp (N) | UNE-EN ISO 13937-2 | 100 (-5 N) |
| Tear Resistance Weft (N) | UNE-EN ISO 13937-2 | 80 (-5 N) |
| Dimensional Change Warp (%) | UNE-EN ISO 5077 | <3% |
| Dimensional Change Weft (%) | UNE-EN ISO 5077 | <3% |
REV.
1
Certifications
EN ISO 11612
IEC 61482
EN ISO 11611
EN 1149
EN ISO 20471
EN 13034
ASTM F1959
EN 1149-5
Risks
Washing Info
Wash at 75ºC
Iron at 150ºC
Do not bleach
Tumble dry at low temperature
Tunnel drying
Dry clean
