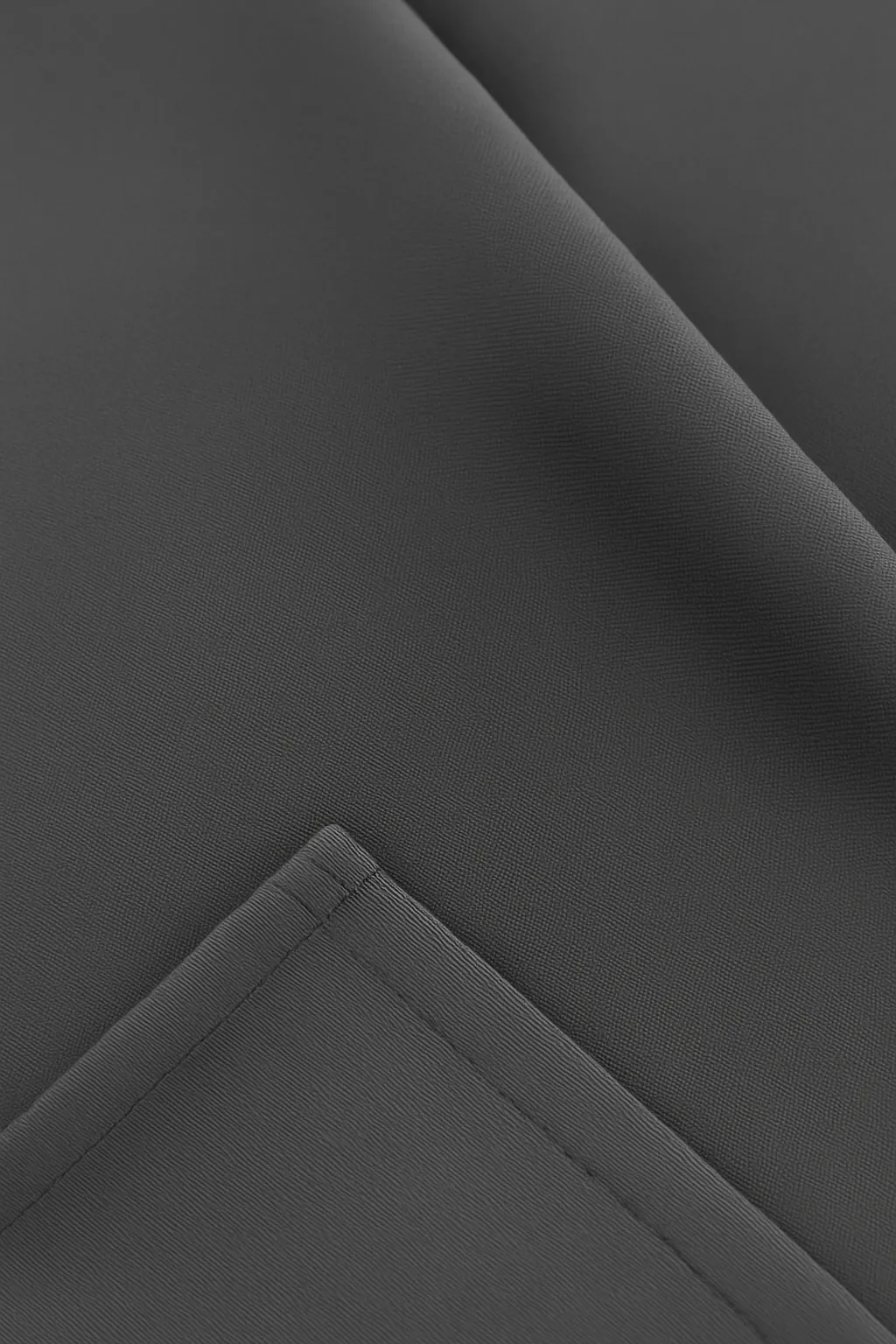

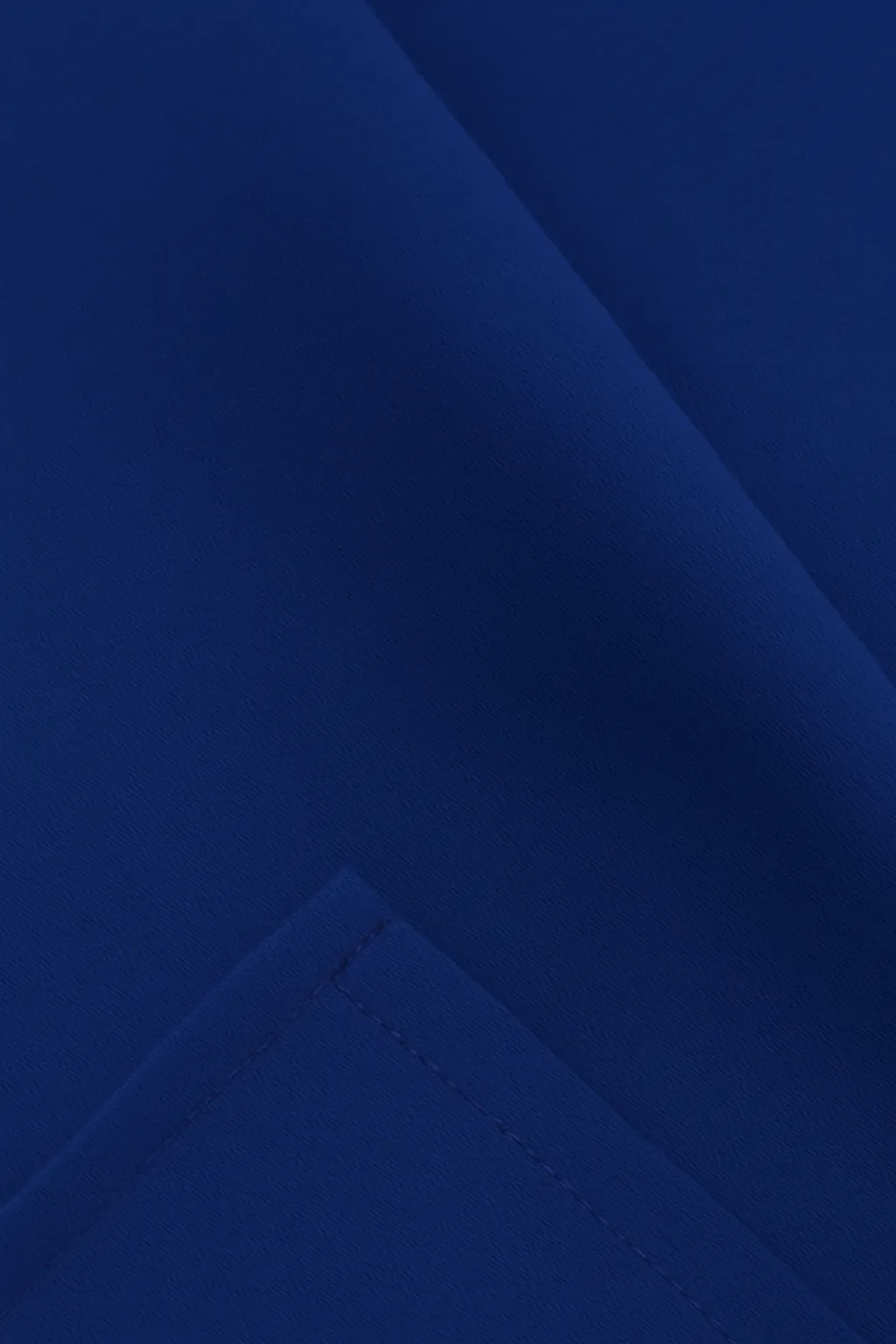

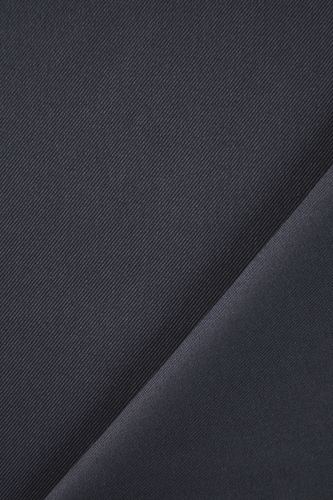

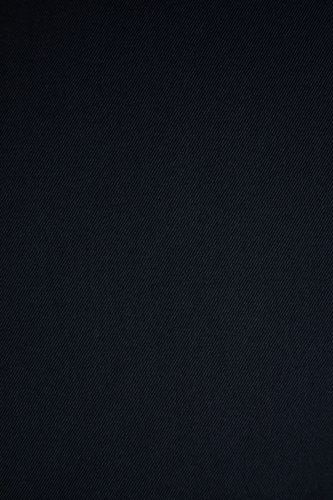

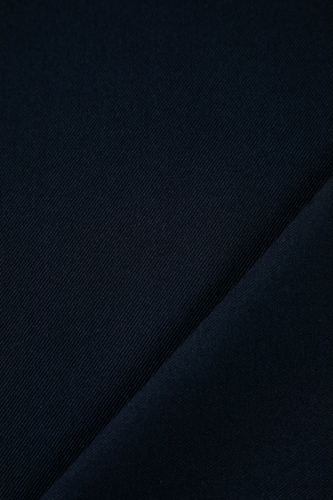

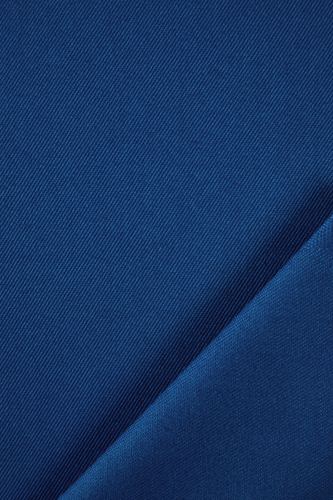

RMARKO R270

Name: RMARKO R270
Brand: Marina Textil
SKU: RMARKO R270

Comfortable protection against fire and heat. 20% OF RECYCLED MATERIAL

Weight 265 g/m² ± 5%

Weave Sarga 2/1

Width 153 cm

Characteristics	Standard	Result
Heat Resistance (180ºC)	ISO 17493	PASS
Heat Resistance (260ºC)	ISO 17493	PASS
Limited Flame Spread (H)	UNE-EN ISO 15025 (A)	A1
Limited Flame Spread (V)	UNE-EN ISO 15025 (B)	A2
Convective Heat (s)	UNE-EN ISO 9151	B1
Radiant Heat (s)	UNE-EN ISO 6942	C1
Molten Metal Splashes (Iron)	UNE-EN ISO 9185	E1
Contact Heat	UNE-EN ISO 12127-1	F1
Electric Arc (Elim) (cal/cm2)	EN 61482-1-1	8,6
Electric Arc (Ebt) (cal/cm2)	EN 61482-1-1	10
Electric Arc (Box test)	EN 61482-1-2	APC 1
Welding and allied processes	UNE-EN ISO 11611	CLASS 1
Antistatic	UNE-EN 1149-3	PASS
High visibility	UNE-EN ISO 20471	RMARKO R270HV
Antacid	UNE-EN 13034	RMARKO R270FC
Rain	UNE-EN 343	RMARKO R270IR
UPF (Ultraviolet Protection Factor)	UNE-EN 13758-1	50+
Tensile Strength Warp (N)	UNE-EN ISO 13934-1	825 ± 10%
Tensile Strength Weft (N)	UNE-EN ISO 13934-1	495 ± 10%
Tear Resistance Warp (N)	UNE-EN ISO 13937-2	25 (-5 N)
Tear Resistance Weft (N)	UNE-EN ISO 13937-2	35 (-5 N)
Dimensional Change Warp (%)	UNE-EN ISO 5077	< 3%
Dimensional Change Weft (%)	UNE-EN ISO 5077	< 3%
