RMARKO R270IR

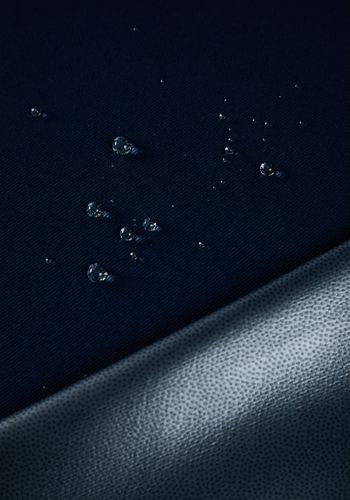

Waterproof breathable membrane
Waterproof breathable membrane
The RMARKO R270IR flame-retardant fabric offers durable and comfortable protection using recycled materials, incorporating IR properties for demanding environments.
Weight
285 g/m² ± 5%
Weave
Sarga 2/1
Width
152 cm
COLORS
Description
The RMARKO R270IR fabric is a technical flame-retardant solution designed to provide protection against fire and heat, combining durability, comfort, and sustainability in demanding industrial environments. With an approximate weight of 285 g/m² and a 2/1 twill weave, it features a robust structure that allows for the creation of durable and functional garments for heavy-duty use. This fabric is part of the RMARKO range, developed using recycled materials sourced from the production process itself. It incorporates approximately 20% recycled material, contributing to a more sustainable solution without compromising the fabric’s technical performance. Its IR designation refers to properties designed to protect against external conditions such as rain and inclement weather, enhancing the fabric’s performance in environments where environmental exposure is a significant factor. Additionally, it maintains multi-standard characteristics such as inherent flame-retardant properties, heat protection, antistatic properties, and resistance to various industrial hazards, making it a versatile option for multiple applications. The RMARKO R270IR is particularly well-suited for the manufacture of personal protective equipment (PPE) in sectors such as manufacturing, utilities, energy, maintenance, and petrochemicals, where it is necessary to combine thermal protection, mechanical strength, and resistance to weather conditions. This fabric enables the creation of durable, functional, and sustainable garments tailored to demanding work environments involving multiple hazards.catalog.tab_tech
| Characteristics | Standard | Result |
|---|---|---|
| Heat Resistance (180ºC) | ISO 17493 | PASS |
| Heat Resistance (260ºC) | ISO 17493 | PASS |
| Limited Flame Spread (H) | UNE-EN ISO 15025 (A) | A1 |
| Limited Flame Spread (V) | UNE-EN ISO 15025 (B) | A2 |
| Convective Heat (s) | UNE-EN ISO 9151 | B1 |
| Radiant Heat (s) | UNE-EN ISO 6942 | C1 |
| Molten Metal Splashes (Iron) | UNE-EN ISO 9185 | E1 |
| Contact Heat | UNE-EN ISO 12127-1 | F1 |
| Electric Arc (ATPV) (cal/cm2) | EN 61482-1-1 | > 8 |
| Electric Arc (ATPV) (cal/cm2) | ASTM F1959 | > 8 |
| Electric Arc (Box test) | EN 61482-1-2 | APC 1 |
| Welding and allied processes | UNE-EN ISO 11611 | CLASS 1 |
| Antistatic | UNE-EN 1149-3 | PASS |
| High visibility | UNE-EN ISO 20471 | RMARKO R270HV |
| Antacid | UNE-EN 13034 | RMARKO R270FC |
| Rain | UNE-EN 343 | CLASS 4/4 |
| UPF (Ultraviolet Protection Factor) | UNE-EN 13758-1 | 50+ |
| Water vapour resistance - Ret (m2·Pa/W) | UNE-EN ISO 11092 | 11,40 |
| Tensile Strength Warp (N) | UNE-EN ISO 13934-1 | 825± 10% |
| Tensile Strength Weft (N) | UNE-EN ISO 13934-1 | 520 ± 10% |
| Tear Resistance Warp (N) | UNE-EN ISO 13937-2 | 30 (-5 N) |
| Tear Resistance Weft (N) | UNE-EN ISO 13937-2 | 50 (-5 N) |
| Dimensional Change Warp (%) | UNE-EN ISO 5077 | < 3% |
| Dimensional Change Weft (%) | UNE-EN ISO 5077 | < 3% |
REV.
3
Certifications
EN ISO 11612
IEC 61482
EN ISO 11611
EN 1149
EN ISO 20471
EN 13034
EN 343
ASTM F1959
EN 1149-5
Risks
High visibility
Low temperatures
Metal projections
Molten metal splashes
Contact heat
Electric arc
Rain and weather
Antistatic
Antacid
Heat and flames
