RMARKO R330HV FC
Fluorocarbon F6
High visibility
Fluorocarbon F6
High visibility

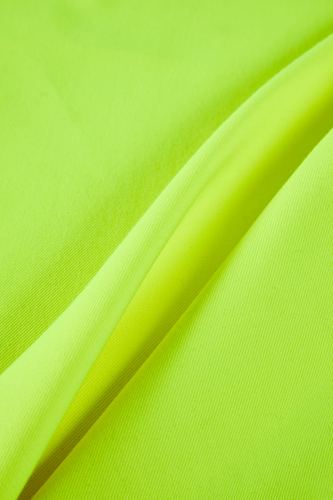

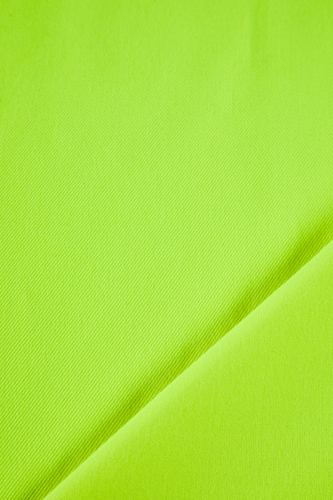

The RMARKO R330HVFC flame-retardant fabric in high-visibility (HV) yellow features a water-repellent FC finish, offering maximum durability, visibility, and sustainability.
Weight
335 g/m² ± 5%
Weave
Sarga 3/1
Width
152 cm
COLORS
Description
The RMARKO R330HVFC fabric is a high-performance flame-retardant technical solution designed to provide protection against fire and heat, combining maximum durability, visibility, and sustainability in demanding industrial environments. Its HV (High Visibility) designation refers to its high-visibility yellow color, which is ideal for enhancing user safety in low-visibility conditions. With an approximate weight of 335 g/m² and a 3/1 twill weave, this fabric features a robust structure particularly suited for intensive applications and severe working conditions. The RMARKO R330HVFC is part of the RMARKO range, developed using recycled materials from the production process itself. It incorporates approximately 20% recycled material, contributing to a more sustainable solution without compromising its technical performance or durability. Additionally, it features an FC (fluorocarbon) finish that provides repellency against liquids, oils, and dirt. This treatment acts as a protective barrier that prevents the penetration of external agents, facilitating garment maintenance and improving its performance in demanding industrial environments. Thanks to its combination of high visibility, mechanical strength, and water-repellent finish, the RMARKO R330HVFC is particularly well-suited for manufacturing personal protective equipment (PPE) in sectors such as heavy industry, energy, utilities, oil & gas, and maintenance, where it is necessary to combine thermal protection, visibility, and resistance to external elements. The RMARKO R330HVFC fabric is an ideal choice for developing recycled, robust, and functional multi-standard garments, adapted to the most demanding work environments and aligned with new sustainability requirements.catalog.tab_tech
| Characteristics | Standard | Result |
|---|---|---|
| Heat Resistance (180ºC) | ISO 17493 | PASS |
| Heat Resistance (260ºC) | ISO 17493 | PASS |
| Limited Flame Spread (H) | UNE-EN ISO 15025 (A) | A1 |
| Limited Flame Spread (V) | UNE-EN ISO 15025 (B) | A2 |
| Convective Heat (s) | UNE-EN ISO 9151 | B1 |
| Radiant Heat (s) | UNE-EN ISO 6942 | C1 |
| Molten Metal Splashes (Iron) | UNE-EN ISO 9185 | E3 |
| Contact Heat | UNE-EN ISO 12127-1 | F1 |
| Electric Arc (Elim) (cal/cm2) | EN 61482-1-1 | 12 |
| Electric Arc (ATPV) (cal/cm2) | EN 61482-1-1 | 16 |
| Electric Arc (Box test) | EN 61482-1-2 | APC 1 |
| Welding and allied processes | UNE-EN ISO 11611 | CLASS 1 |
| Antistatic | UNE-EN 1149-3 | PASS |
| High visibility | UNE-EN ISO 20471 | PASS |
| Antacid | UNE-EN 13034 | PASS |
| UPF (Ultraviolet Protection Factor) | UNE-EN 13758-1 | 50+ |
| Water vapour resistance - Ret (m2·Pa/W) | UNE-EN ISO 11092 | 4,11 |
| Tensile Strength Warp (N) | UNE-EN ISO 13934-1 | 1050 ± 10% |
| Tensile Strength Weft (N) | UNE-EN ISO 13934-1 | 550 ± 10% |
| Tear Resistance Warp (N) | UNE-EN ISO 13937-2 | 30 (-5 N) |
| Tear Resistance Weft (N) | UNE-EN ISO 13937-2 | 45 (-5 N) |
| Dimensional Change Warp (%) | UNE-EN ISO 5077 | < 3% |
| Dimensional Change Weft (%) | UNE-EN ISO 5077 | < 3% |
REV.
2
Certifications
EN ISO 11612
IEC 61482
EN ISO 11611
EN 1149
EN ISO 20471
EN 13034
ASTM F1959
EN 1149-5
Risks
High visibility
Metal projections
Molten metal splashes
Contact heat
Electric arc
Antistatic
Antacid
Heat and flames
